Diagnostic Rabbit Hole

This one tested my patience.

Got an airbag warning tied to the front passenger airbag deactivation indicator. ISTA reported:

930AB2 – Indicator lamp for front passenger airbag deactivation: Short-circuit to earth / open circuit

At first, this sounded terrifying. Airbags, igniters, crash safety modules. The usual things that make you reconsider touching anything at all.

My mind went straight to worst-case scenarios:

  • Faulty seat airbag igniter
  • Broken wiring inside the seat
  • Bad occupancy sensor
  • Worst of all, an ACSM failure (

Chasing the Obvious (and Being Wrong)

I pulled the wiring diagrams in ISTA and traced the entire circuit. The ACSM feeds connector X12-1B, which then runs directly to B69, the side airbag igniter in the seat.

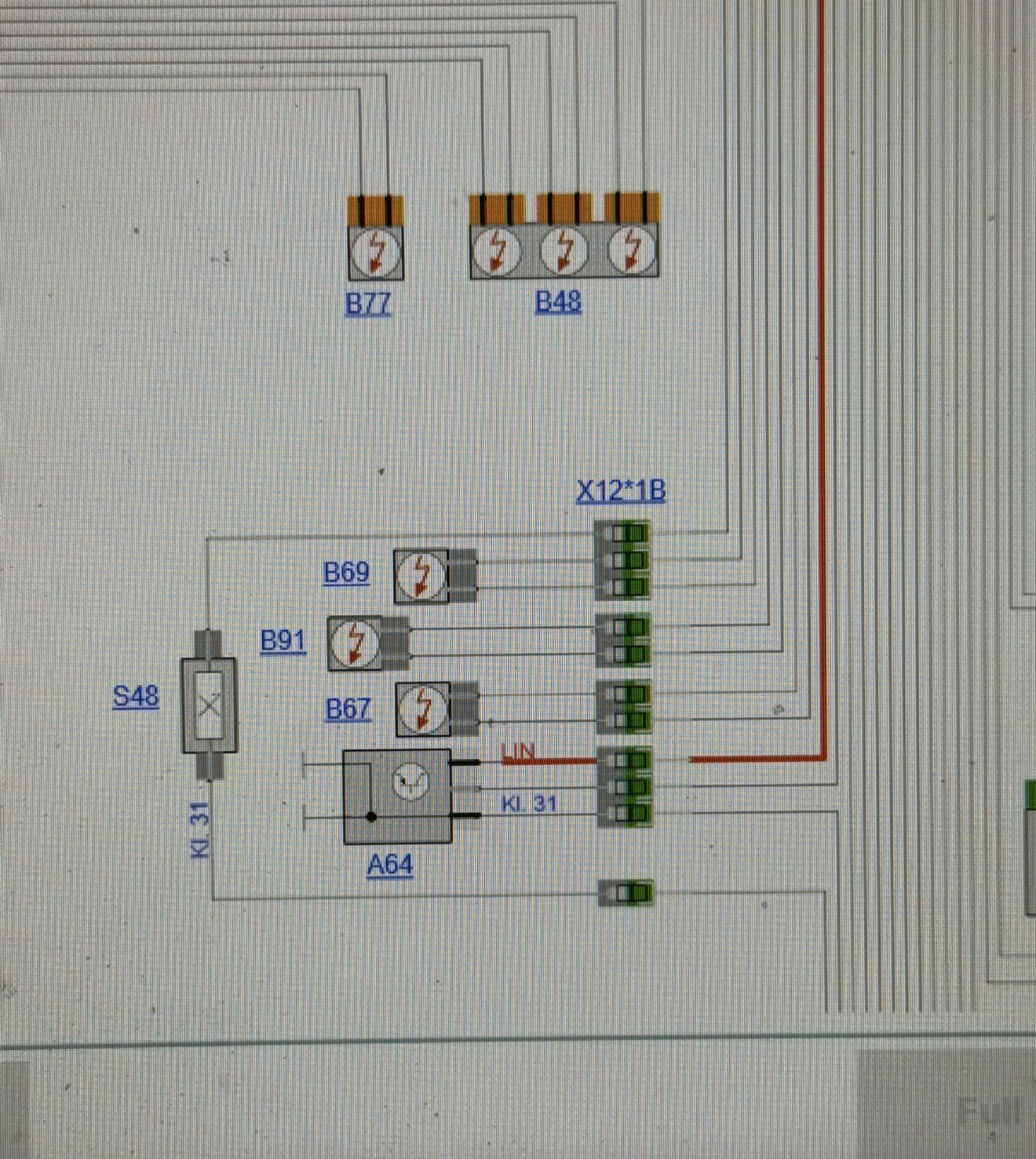

ACSM to B69 wiring diagram

With the diagram in hand, I started testing a multimeter.

Wiring & Airbag Checks

  • Continuity from X12 to B69: good
  • Resistance across the igniter: ~2.5 ohms (within spec)

With those results, I confidently ruled out:

  • Seat airbag igniter
  • Seat wiring
  • ACSM output to the igniter

So then What could be the cause of this fault?

The “Wait a Minute” Moment

After re-reading the ISTA fault description, I realized the fault didn’t actually say anything about the airbag itself. It specifically says the indicator lamp for front passenger airbag deactivation.

That detail changed the direction of the diagnosis. The indicator is housed in the roof function center (FZD).

Chasing the Indicator

With my focus shifted, I checked the indicator behavior:

  • Light behavior on startup → nothing
  • Passenger seated → still nothing

I got a used roof function center from the junkyard and swapped it in.

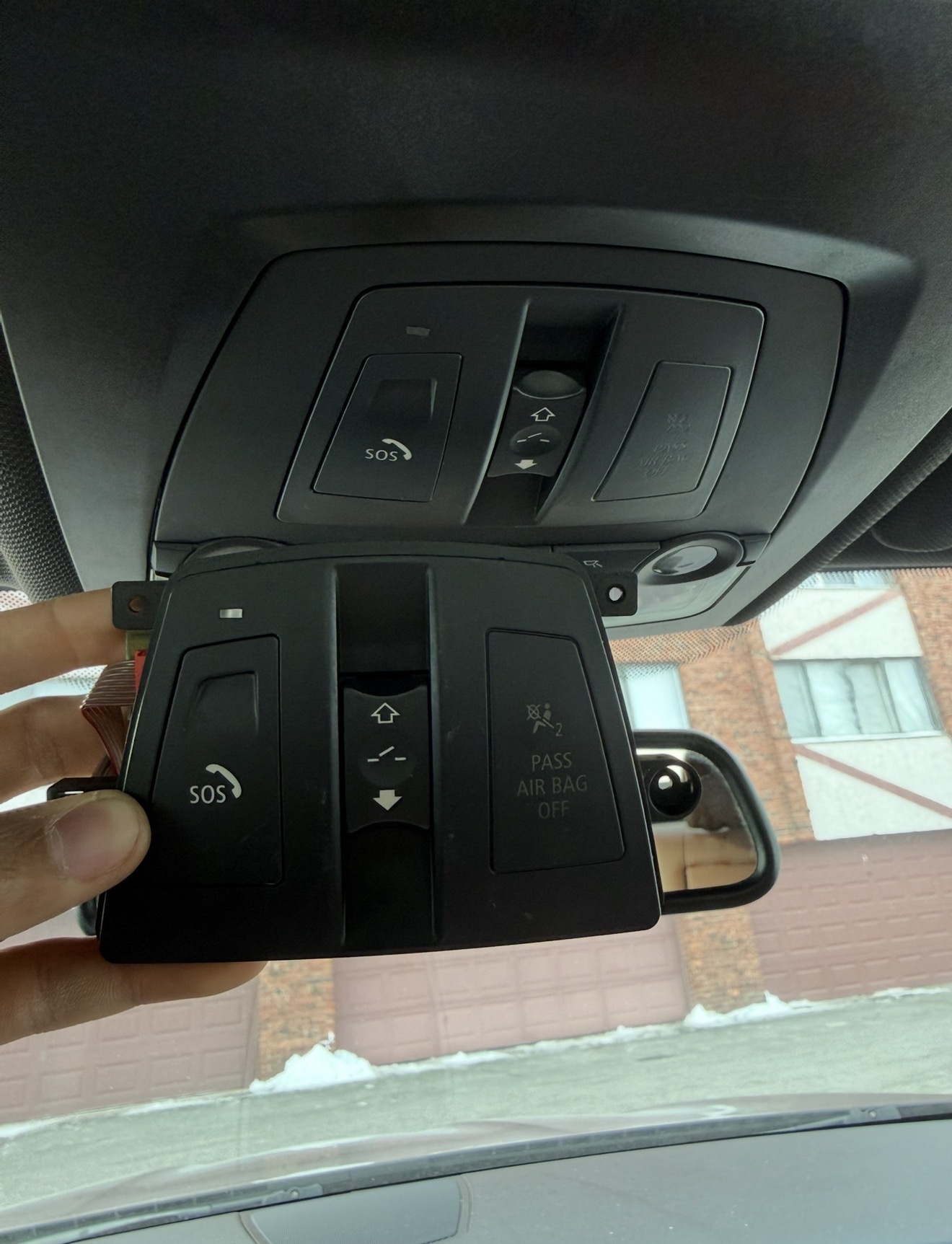

FZD Modules

Still no light.

At this point, I was confused until i looked at the wiring between the ACSM and FZD and noticed something I had completely overlooked earlier. A power line feeding the FZD, protected by a fuse.

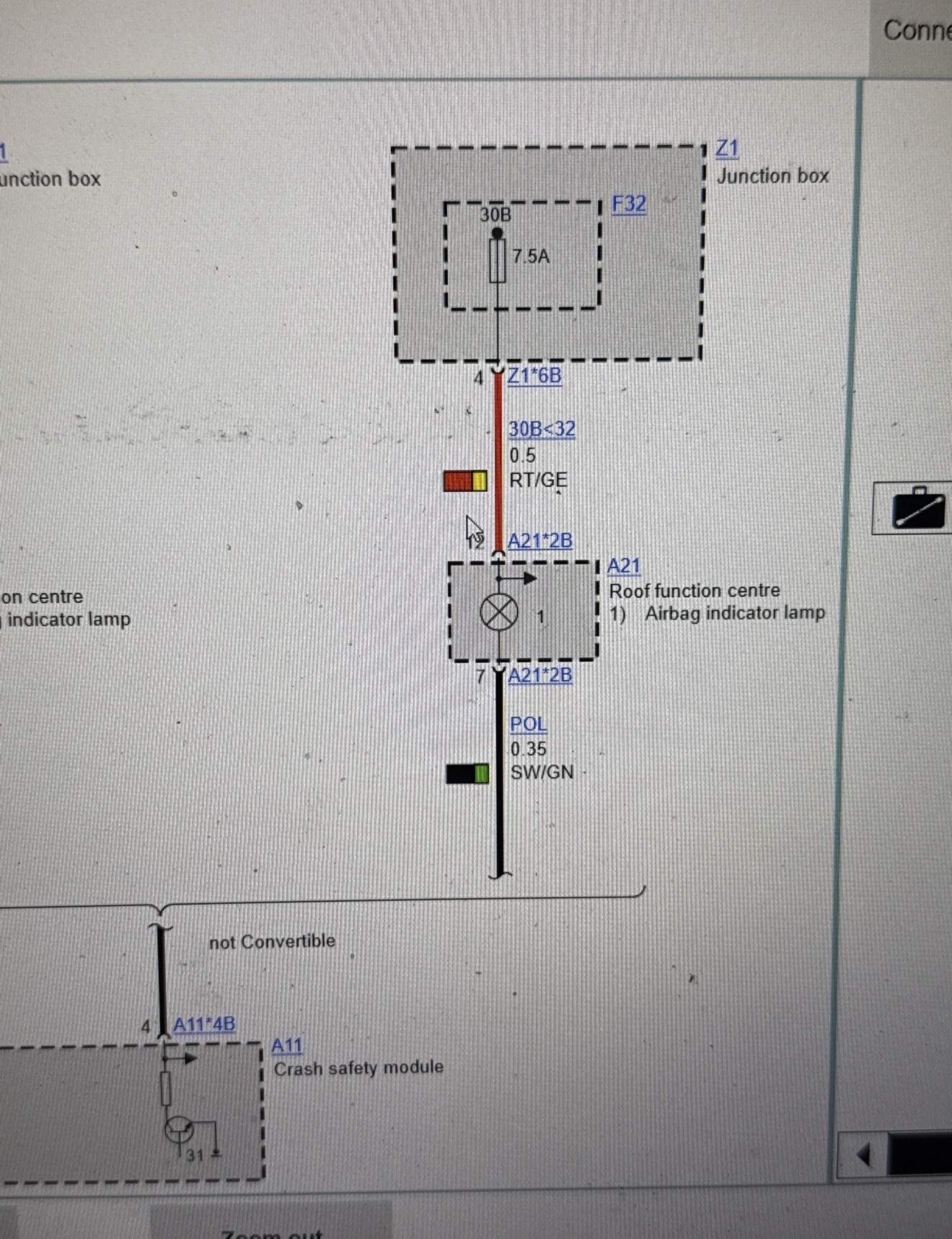

ACSM to FZD wiring

That’s when it clicked.

Is it really that simple? Did I just do all of this for nothing?

Sure enough, I checked the fuse and it was blown.

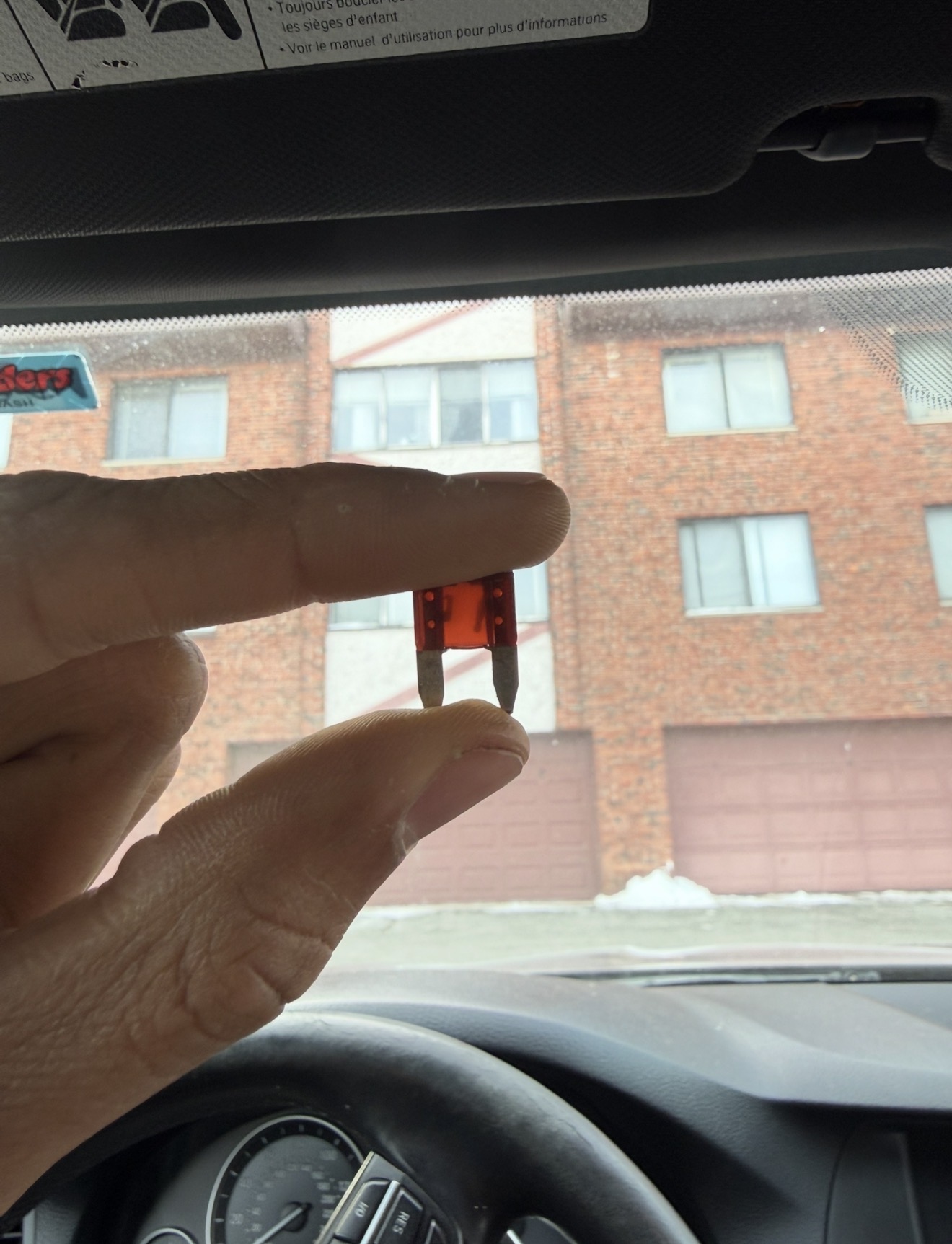

Blown fuse

I replaced it, cleared the codes, and instantly:

  • Passenger airbag indicator illuminated correctly
  • Fault cleared
  • System behaved exactly as designed

Fixed light

That was it.

Final Thoughts

This was a perfect example of how BMW faults can sound catastrophic but end up being painfully simple.

All that stress… for a fuse.
BMW ownership in a nutshell.
